Monocrystalline Silicon Half Piece Single Glass Ten Grid Assembly Solar Panel

Brand Name : OEM

Model Number : See details

Place of Origin : Hubei, China

Cell size : 182mmx182mm, 182mm*182mm

Type : Half Cell

Panel Dimensions : 2278 * 1134 * 35mm(89.69*44.65*1.38in)

Panel Efficiency : 21.3%, 21.3%

Application : Solar Panel System

Product name : Sola Panel

Certificate : CE TUV

Warranty : 25 Years, 30 year

Solar cell : 144 Cells

OEM Order : Acceptable

Color : Customized Color

Packing : Wooden Case

MOQ : 100 watts

Price : $0.23-0.27 / watt

Contact Now

Product Description

Electrical Characteristic
Rated output (Pmp/Wp)	520W	525W	530W	535W	540W	545W	550W	555W	560W
Open Circuit Voltage(Voc)	48.9	49.05	49.20	49.35	49.50	49.65	49.90	50.05	50.20
Short Circuit Current(Isc)	13.57	13.65	13.71	13.78	13.85	13.92	14.00	14.07	14.14
Maximum Power Voltage(Vmpp)	41.05	41.20	41.35	41.50	41.65	41.80	41.96	42.12	42.28
Maximum Power Current(Impp)	12.67	12.79	12.82	12.90	12.97	13.04	13.11	13.18	13.25
Module efficiency(%)	20.3%	20.5%	20.7%	20.9%	21.1%	21.3%	21.5%	21.7%	21.9%
Standard Test Condition(STC)	Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5
Mechanical Characteristic
No.of Cells		144(6x24)
Weight		32.3kg
Dimension		2256x1133x35mm
Junction Box		IP68,three diodes
Output Cables		4mm2,positive 400mm /negative 200mm ,length can be customized
Glass		Dual glass,3.2mm coated tempered glass
Frame		Anodized aluminum alloy frame

FAQ

Q1: Can the product be shipped to my area?
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.

Q3: What about the lead time?
A3: 15 days for

Q2: How can I make payment?
A2:100% TT or maximum we can accept 30% TT in advance and 70% TT upon goods ready before shipment

Q4: What is the mode of transport?
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.

Q5: what’s the warranty?
A5:12 years enhanced product warranty on materials and workmanship, 25 years linear power output warranty. More detail please refer to our limited warranty statement

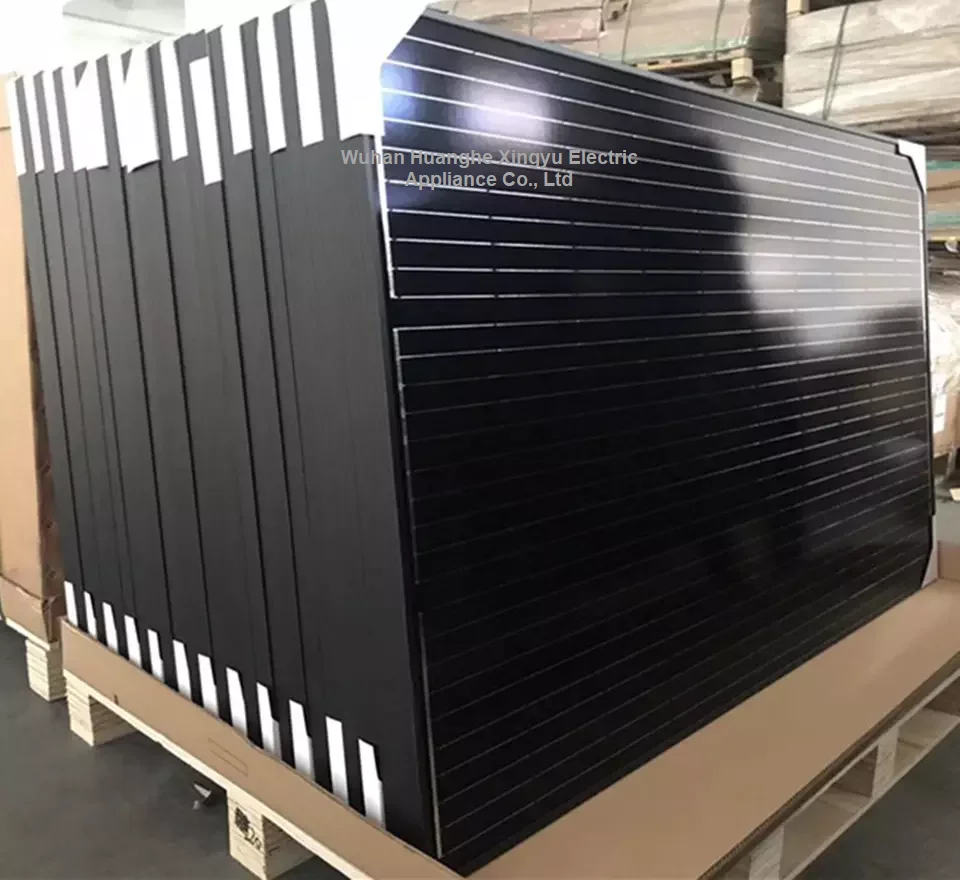

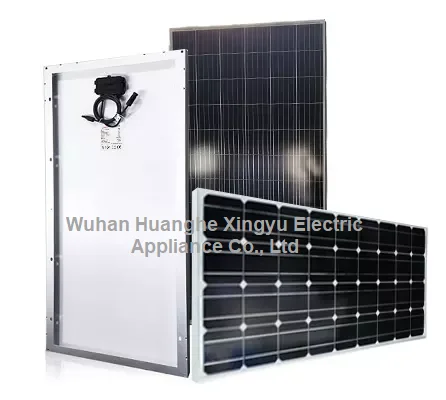

Monocrystalline Silicon Half Piece Single Glass Ten Grid Assembly Solar Panel Images
